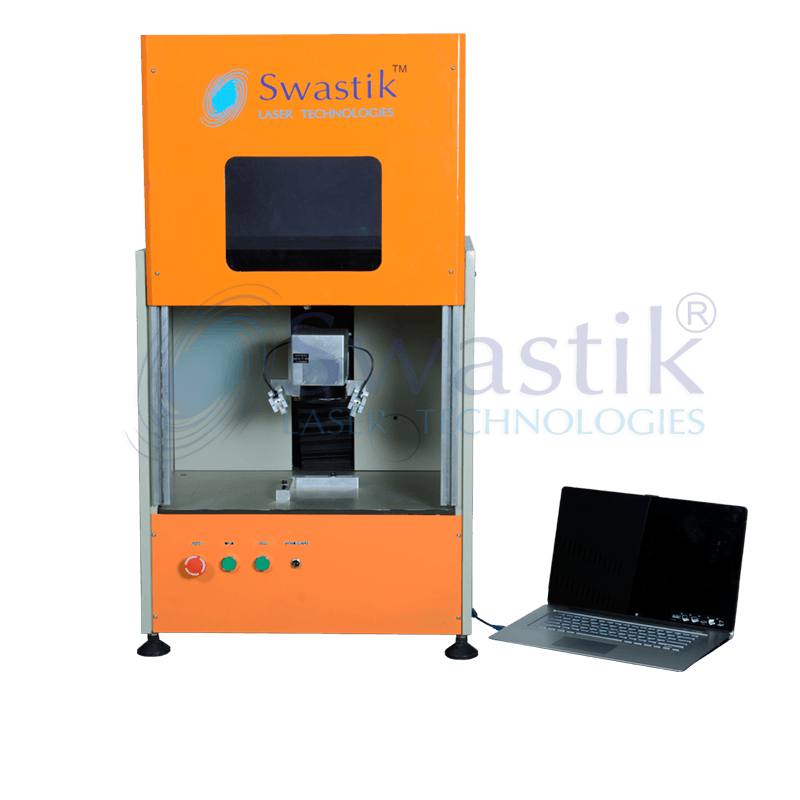

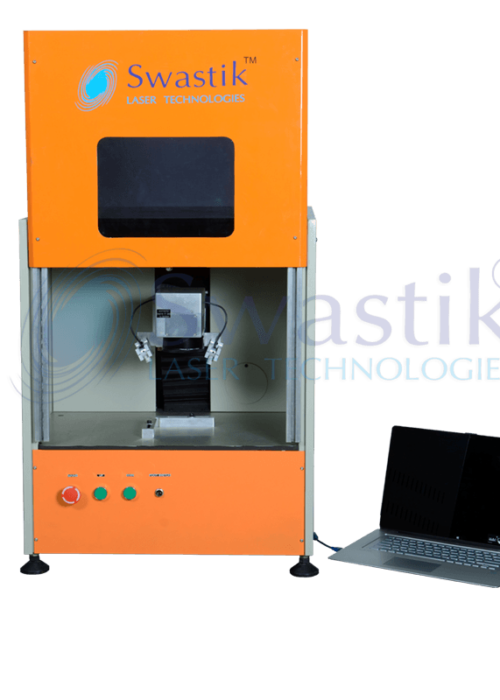

As a leading laser machine manufacturer in India, we offer high quality and user-friendly jewellery hallmarking machine all over India. The Jewellery hallmarking machine gives you the freedom to place the machine at any place. The machine is lightweight and can also be integrated into the production line if required. This machine is most preferred for marking Bis Logo, barcodes, serial numbers, QR code, brand name, designs on different materials Gold, Silver, Bronze, Platinum, Titanium, Bronze, Imitation etc.
Product Samples
Zero maintenance machine
Within 2 Second your Brand Printing
No ink, No Chemical, No gas require
24*7 Hours Non Stop Working
Easy To Operate machine
Fast Production
No Risk Jewellery damage
Saves Man Power Time
working On single Phase
| Sr. No. | Parameters | Details |
|---|---|---|
| 1 | Laser Type | Multi Diode Pump Pulsed Fiber Laser |
| 2 | Laser Power | 20 Watt (Optional 30,50,100) |
| 3 | Laser Life | 1,00,000 + Hours (Mean you work daily 8 hours so 33 YEARS Life) |
| 4 | Marking Area | 180*180 mm Standard (Optional 70*70, 100*100, 150*150, 200*200, 250*250, 300*300, 300*600, 600*600, 1000*1000, 1250*2500) |
| 5 | Marking Speed | ≤ 12,000 mm / second |
| 6 | Operating Voltage | 100-240V AC / 50-60 Hz |
| 7 | Electric Consumption | < 1 KW |
| 8 | Material Surface | Flat & Round ( 2 in 1 Machine ) |
| 9 | Marking Depth | 0.001 to 4.00 mm (Depend on Materials) |
| 10 | Supporting Format | PLT, DXF, AI, JPG, BMP, SVG, BOT, GBR, DST, NC, JPEG, GIF, PNG, TIF, TXT, DOCX, XLSX |
| 11 | Min Character Height | 0.35 mm (Depend on Materials) |
| 12 | Min line width | 0.03 mm (Depend on Materials) |
| 13 | Beam Quality M² | < 2.0 |
| 14 | Single pulse energy (mJ) | 1 to 50 KHz |
| 15 | Repetition Frequency Range | 20-100 KHz |
| 16 | Laser Class | Class IV |
| 17 | Output power stability Continue Work 4 Hours | < 2 % |
| 18 | Optical Noise | < 2 % RMS |
| 19 | Wavelength | 1064 ± 4 nm |
| 20 | Polarization | Random |
| 21 | Power Adjustment | 0 to 100% |
| 22 | Cooling System | Air cooled |
WHICH MATERIAL YOU CAN MARK!!
- StainlessSteel
- MildSteel
- CastIron
- Aluminum
- Copper
- Brass
- Gold
- Silver
- Bronze
- Platinum
- Titanium
- Plastic
- Coated Glass &etc.
Empty section. Edit page to add content here.
- AutomobileHardware
- Utensils
- Kitchenware
- Pipe Fittings
- Led
- Jewelry & imitation
- Bearing
- Tool & Tooling
- Bearing
- Engineering
- Pump
- Valve
- Pump
- Brass Parts
- 2D & 3D Die
- Surgical Instrument
- 2D & 3D Die
- RO Water
- Pipe
- Watch & Optics
- Pipe
- Copper Parts Cable & Wire
- Gift & Article
- Electronics
- Cosmetic
- Elevators
- Cosmetic
- Solar industries
- AutomobileHardware
