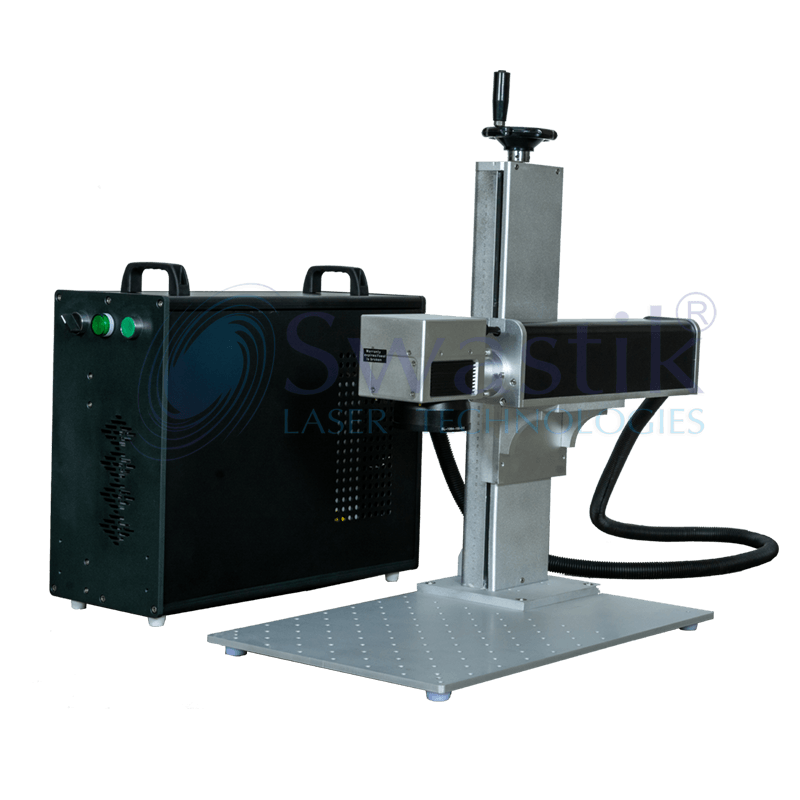

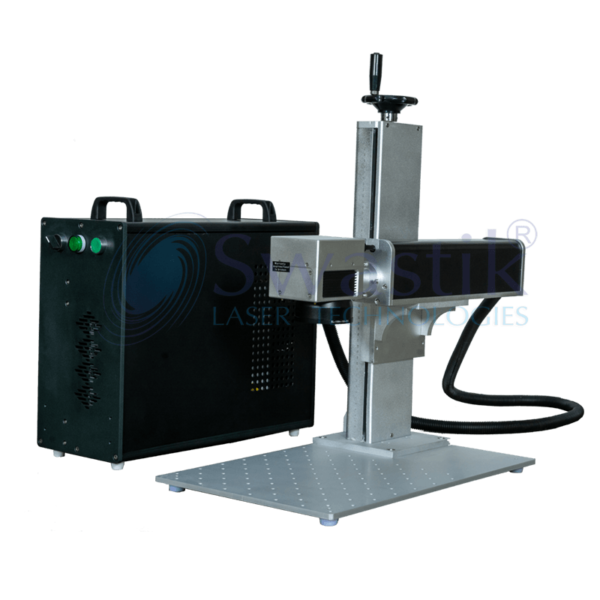

Table top model laser marking machines provide fast speed, permanent marking and it is able to code high-resolution logos for brand protection, barcodes or QR codes, as well as dates, batch codes and any other text. Table top model laser marking machines offers reliable and rapid product coding and marking for any production line. As a leading laser machine manufacturer, we at Dolphin Laser Machine provide the best quality table top model laser marking machine all over India.
Product Samples
Zero maintenance machine
Zero maintenance machine
One Time Investment Only
Working on Single Phase
Full Machine Power Load <1 KW
Lifetime perment printing
Within 2 Second your Brand Printing
No ink, No Chemical, No gas require
Show your brand better than competitors
No one can copy your product
24×7 Hours non Stop Working
Metal non metal both materials,
Printing & engraving a single machine
Not only name but Logo, batch code, Serial Number,
2d matrix and any kind of designing Printing and Engraving
No Need Skill Operator
No need make positive or negative film
No need make any type dies
Save Times & Low Labor Work
No body harmful, No environmental pollution
Easy to Operate Machine
| Sr. No. | Parameters | Details |
|---|---|---|
| 1 | Laser Type | Multi Diode Pump Pulsed Fiber Laser |
| 2 | Laser Power | 20 Watt (Optional 30,50,100) |
| 3 | Laser Life | 1,00,000 + Hours (Mean you work daily 8 hours so 33 YEARS Life) |
| 4 | Marking Area | 180*180 mm Standard (Optional 70*70, 100*100, 150*150, 200*200, 250*250, 300*300, 300*600, 600*600, 1000*1000, 1250*2500) |
| 5 | Marking Speed | ≤ 12,000 mm / second |
| 6 | Operating Voltage | 100-240V AC / 50-60 Hz |
| 7 | Electric Consumption | < 1 KW |
| 8 | Material Surface | Flat & Round ( 2 in 1 Machine ) |
| 9 | Marking Depth | 0.001 to 4.00 mm (Depend on Materials) |
| 10 | Supporting Format | PLT, DXF, AI, JPG, BMP, SVG, BOT, GBR, DST, NC, JPEG, GIF, PNG, TIF, TXT, DOCX, XLSX |
| 11 | Min Character Height | 0.35 mm (Depend on Materials) |
| 12 | Min line width | 0.03 mm (Depend on Materials) |
| 13 | Beam Quality M² | < 2.0 |
| 14 | Single pulse energy (mJ) | 1 to 50 KHz |
| 15 | Repetition Frequency Range | 20-100 KHz |
| 16 | Laser Class | Class IV |
| 17 | Output power stability Continue Work 4 Hours | < 2 % |
| 18 | Optical Noise | < 2 % RMS |
| 19 | Wavelength | 1064 ± 4 nm |
| 20 | Polarization | Random |
| 21 | Power Adjustment | 0 to 100% |
| 22 | Cooling System | Air cooled |
WHICH MATERIAL YOU CAN MARK!!
- StainlessSteel
- MildSteel
- CastIron
- Aluminum
- Copper
- Brass
- Gold
- Silver
- Bronze
- Platinum
- Titanium
- Plastic
- Coated Glass &etc.
Empty section. Edit page to add content here.
- AutomobileHardware
- Utensils
- Kitchenware
- Pipe FittingsLed
- Jewelry & imitation
- Bearing
- Tool & Tooling
- Bearing
- Engineering
- Pump
- Valve
- Pump
- Brass Parts
- 2D & 3D Die
- Surgical Instrument
- 2D & 3D Die
- RO Water
- Pipe
- Watch & Optics
- Pipe
- Copper Parts Cable & Wire
- Gift & Article
- Electronics
- Cosmetic
- Elevators
- Cosmetic
- Solar industries
